Fully Automatic 70 Carton Per Minute Stable Side-Feed Wrap Around Case Packer for Medical Applications

70 Carton Per Minute Wrap Around Case Packer

Stable Side-Feed Carton Wrapper

Medical Wrap Around Packer

Éntrenos en contacto con

Solicitar una cita

Fully Automatic 70 Carton Per Minute Stable Side-Feed Wrap Around Case Packer for Medical Applications

Detalles del producto

Capacidad:

20-100 paquetes/minuto

Fuerza:

380V 50Hz

Tamaño del contenedor:

100g-3kg

Capacidad de producción:

80 paquetes por minuto

Longitud del cartón:

150-420 mm

Anchura del cartón:

de una longitud superior o igual a 300 mm

Altura del cartón:

100-335 mm

diámetro del producto:

φ48-106mm

Altura del producto:

95-330 mm

Tamaño del equipo:

15850×4050×2150mm

Peso del equipo:

11000 kg

Presión de funcionamiento del aire:

6bar

Consumo de aire:

160 L/min Máximo

Voltaje de trabajo:

380 V AC 50 Hz

Potencia instalada:

30kw

Resaltar:

70 Carton Per Minute Wrap Around Case Packer

Stable Side-Feed Carton Wrapper

Medical Wrap Around Packer

Pago y términos de envío

Cantidad de orden mínima

Precio

60000

Productos relacionados

Empaquetadora de cajas envolventes totalmente envueltas y bobinadas, sin palets, para bebidas y alimentos, 60 paquetes por minuto

Consiga el mejor precio

Empaquetadora automática de cajas envolventes con una velocidad de 25 cajas/minuto, construcción de acero inoxidable 304 y alimentación de CA 380V

Consiga el mejor precio

Empaquetadora automática de cajas envolventes con certificación CE ISO y componentes Schneider Electrics para un rendimiento estable en el embalaje de cartón

Consiga el mejor precio

Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans

Consiga el mejor precio

Éntrenos en contacto con

+86 13030636622

marketing@pyspc.com

Contacto ahora

Descripción de producto

Fully Automatic 70 Carton Per Minute Stable Side-Feed Carton Wrapper

Product Overview

This fully automatic carton wrapper is designed for high-speed secondary packaging of various container types including PET bottles, glass bottles, and metal cans, with a capacity range of 35-100 packs per minute.

Key Features

Applicable to multiple bottle types: square, flat, and round bottles
Versatile packaging machine that can replace cartoning machines and ancillary equipment
Also known as: Carton Packer, Case Packer, Wrap Around Packer, and various other industry names

Main Components Configuration

Component	Brand
PLC	Inovance, China
Servo motor and control system	Inovance, China
Upper configuration software	Ab Optix
Frequency converter	Inovance, China
Proximity electronic switch	SICK or equivalent brand
Terminal	Phoenix

Equipment Specifications

Parameter	Value
Production capacity	80 packs/minute (varies by bottle type and packaging method)
Carton dimensions after forming (mm)	Length: 150-420, Width: 130-350, Height: 100-335
Packing specifications	3×4, 3×5, 4×6, 2×3, 2×4 and other configurations
Product diameter range	48mm-106mm
Product height range	95mm-330mm
Equipment dimensions (mm)	15850×4050×2150 (requires 3000mm clearance height)
Applicable container types	Cans, glass bottles, PET containers
Power requirements	380V AC 50HZ; 30KW installed power, 20KW operating power

Carton Folding Process

Inner flap forming process flow

Outer tongue forming process flow

Equipment Components and Process Flow

The machine consists of multiple integrated systems including bottle feeding conveyor, pressure control module, product grouping mechanism, cardboard handling system, and forming sections.

Servo Mechanism Distribution

Mechanism	Number of Servos
Upper forming	2
Lower forming	2
Folding on both sides	4
Top capping	1
Cardboard transfer	2

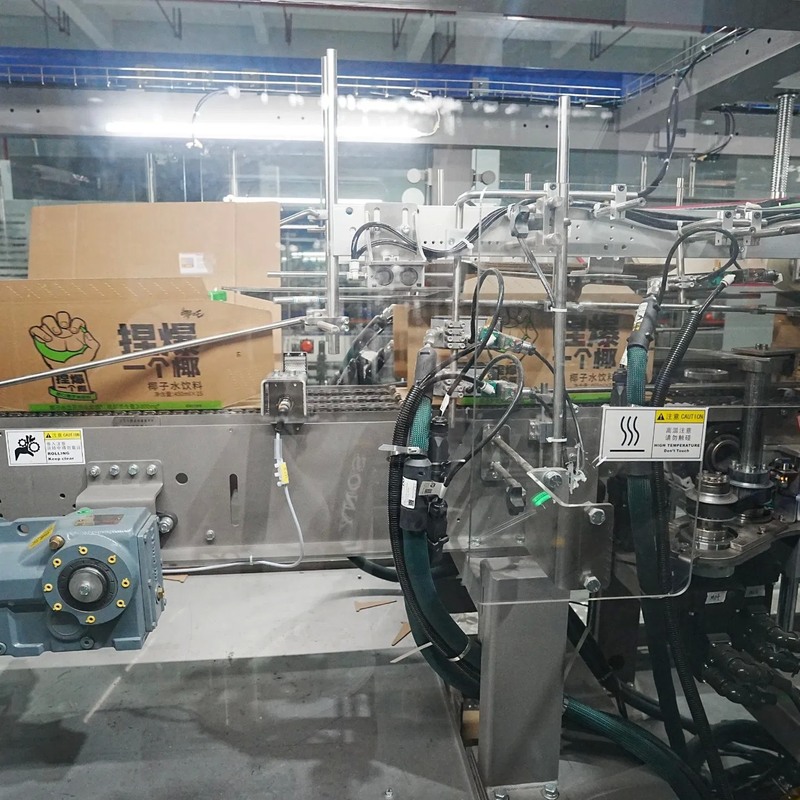

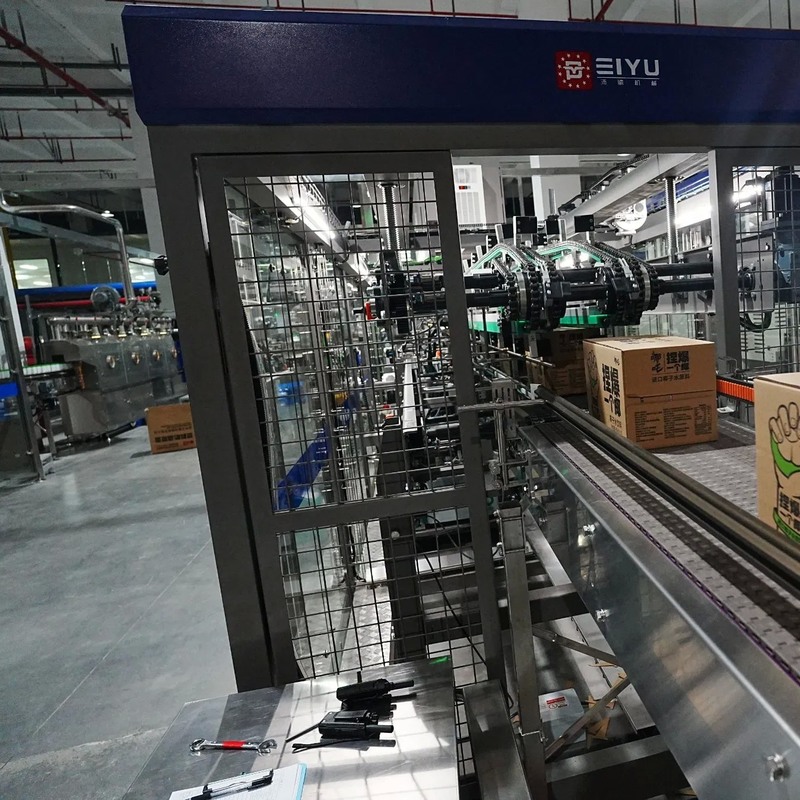

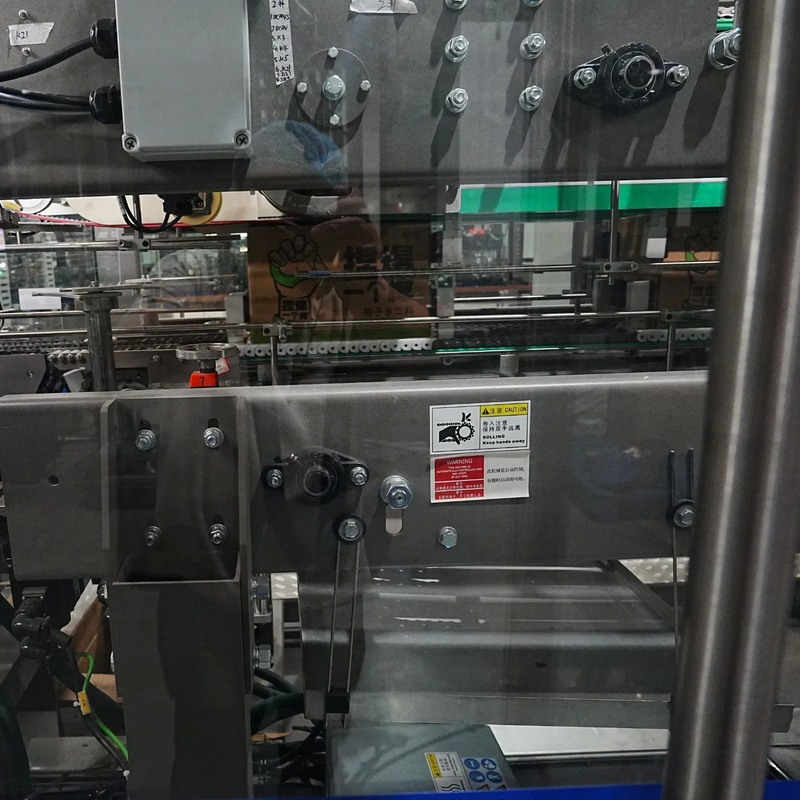

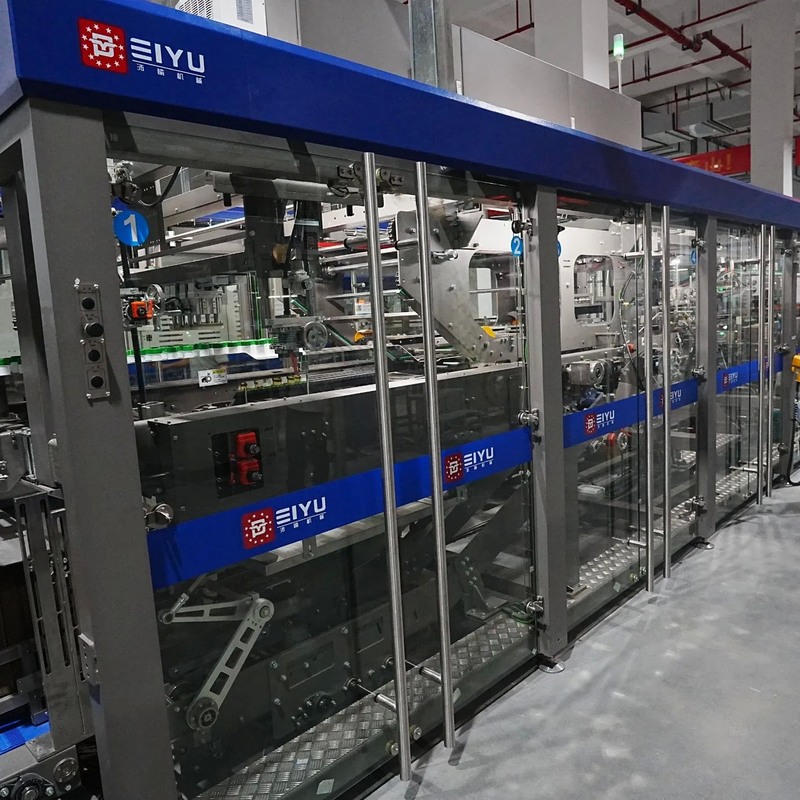

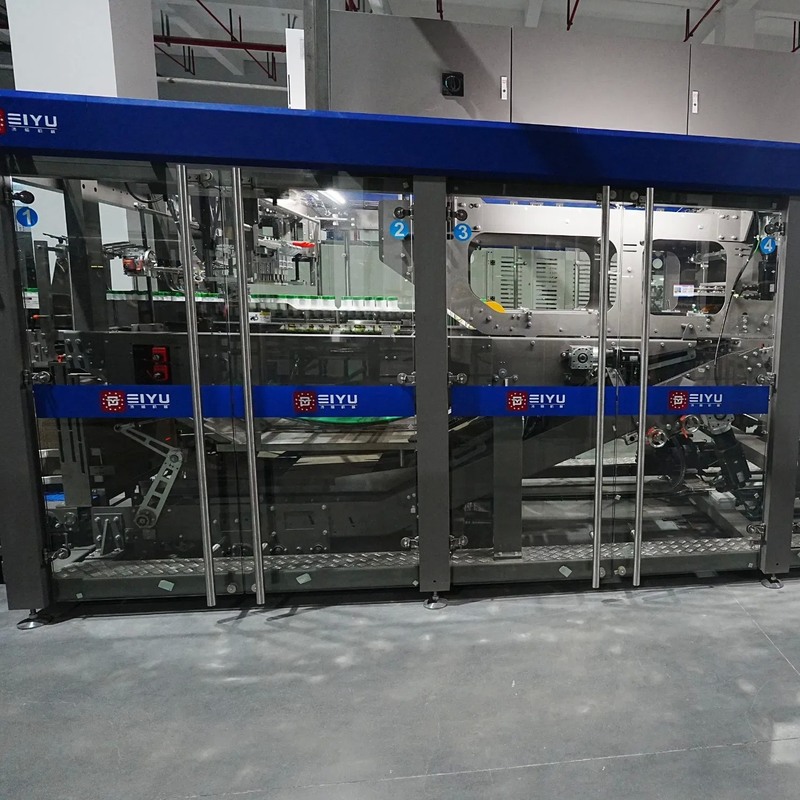

Product Images

Manufacturer Information

Peiyu Enterprise owns multiple subsidiaries specializing in packaging technology and machinery manufacturing, offering complete intelligent equipment solutions for liquid and solid product companies worldwide.

Our product range includes various packaging machinery for beverages, dairy products, water, condiments, alcohol, oil, cosmetics, and pharmaceutical industries.

We maintain partnerships with major international brands and our products are exported to North America, South America, Africa, Europe, and the Middle East.

Certifications

Production Facility

Electrical Components
